Dettagli:
Termini di pagamento e spedizione:
|
Applicazione: | Polvere, medicina che elabora, prodotti chimici che elaborano, trasformazione dei prodotti alimentar | Gamma di velocità di rotazione del mandrino (r.p.m): | 16 - 60 |
---|---|---|---|
Dopo servizio della garanzia: | Video supporto tecnico, supporto online, servizio dei pezzi di ricambio, di manutenzione sul campo e | Materiale: | Acciaio inossidabile |
Potere (w): | 6-110 CHILOWATT | Garanzia: | 1 anno |
Porto: | SHANGHAI CINA | Tensione: | 220-660V |
Evidenziare: | macchina asciutta del miscelatore della polvere 4000L,macchina del mescolatore di paletta della proteina |

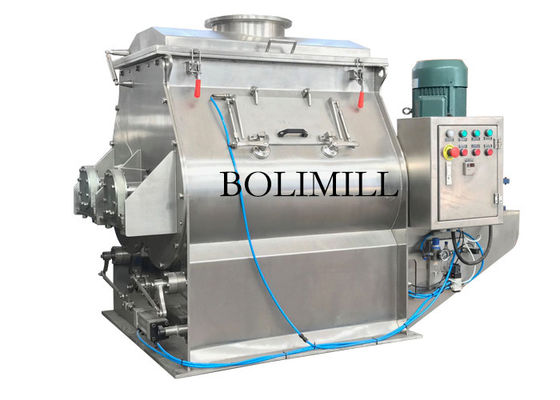

Stainless Steel Food Grade Protein Powder Mixing Machine Double Shaft Paddle Mixer
Product Description
JB series double shaft paddle mixer is suitable for mixing powder and powder, granule and granule, granule and powder and adding a small amount of liquid. It is widely used in chemical industry, dry powder mortar, pesticide, ceramics, food, feed and battery industries. This machine is a high-precision mixing equipment, which has wide adaptability to the mixture. The materials with large contrast, proportion and particle size can be mixed evenly.
Advantages of double shaft paddle mixer
1. High activity: reverse rotation, feeding at different angles, stirring time 1-3min.
2. High uniformity: compact design and rotating shaft equipped with hopper, mixing uniformity up to 99%.
3. Mild stirring will not destroy the physical size of the material.
4. Convenient maintenance: The structure of the paddle mixer is very simple, easy to disassemble and maintain.
Technical Parameters
Model | Size | Volume | Capacity | Speed | Weight | Power | ||
L | W | H | L | KG/Batch | Rpm/min | T | KW | |
JB-300 | 1640 | 1000 | 1350 | 300 | 150 | 60 | 800 | 6 |
JB-600 | 1915 | 1200 | 1560 | 600 | 300 | 43 | 1000 | 11 |
JB-1000 | 2510 | 1400 | 1800 | 1000 | 500 | 43 | 1500 | 15 |
JB-2000 | 2980 | 1700 | 1900 | 2000 | 1000 | 43 | 2500 | 22 |
JB-3000 | 3160 | 1800 | 1950 | 3000 | 1500 | 43 | 2900 | 30 |
JB-4000 | 3360 | 1900 | 2000 | 4000 | 2000 | 35 | 4100 | 37 |
JB-6000 | 3640 | 2150 | 2350 | 6000 | 3000 | 35 | 6500 | 44 |
JB-8000 | 4100 | 2400 | 2500 | 8000 | 4000 | 29 | 7500 | 60 |
JB-10000 | 4320 | 2600 | 2600 | 10000 | 5000 | 29 | 8600 | 60 |
JB-12000 | 5000 | 2650 | 2700 | 12000 | 6000 | 22 | 9800 | 74 |
JB-15000 | 5000 | 2700 | 2800 | 15000 | 7500 | 22 | 11600 | 90 |
JB-20000 | 5600 | 2800 | 2850 | 20000 | 10000 | 19 | 16400 | 90 |
JB-30000 | 5800 | 2900 | 2900 | 30000 | 15000 | 16 | 23000 | 110 |

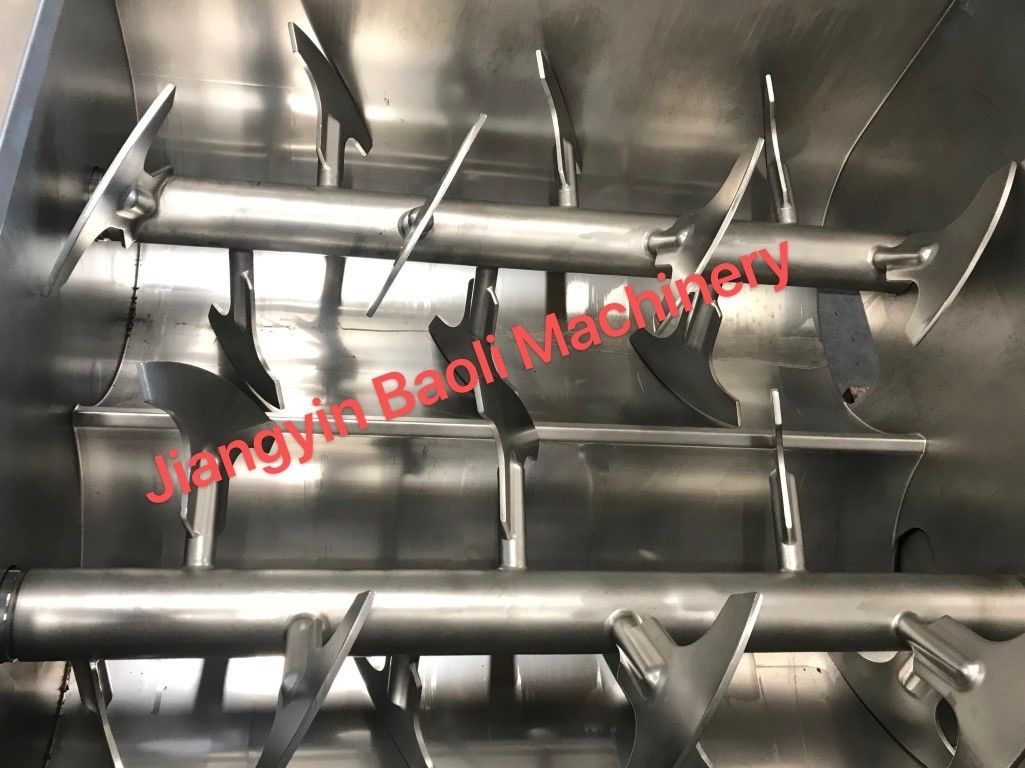

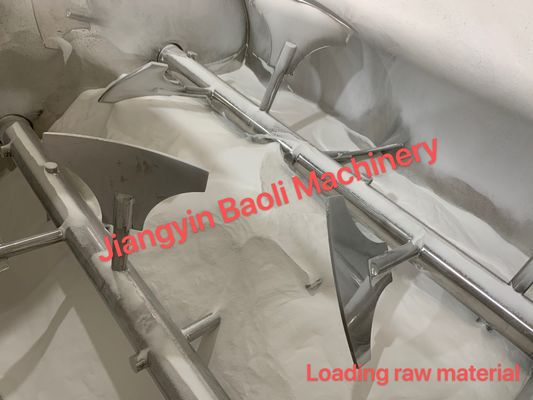

Detail Pictures
Our service
